1.2 micron IV Filter for infusion therapy

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: OEM avaliable
Chứng nhận: YY 0286.1 GB 8368-2018 ISO9001
Số mô hình: F33
Thanh toán:
Số lượng đặt hàng tối thiểu: 100.000 chiếc
Giá bán: $0.15-$0.22 per piece
chi tiết đóng gói: 750 chiếc mỗi gói có nhãn, 4 gói mỗi thùng hoặc tùy chỉnh
Thời gian giao hàng: 30 ngày
Điều khoản thanh toán: L/C, T/T
  • Thông tin chi tiết
  • Mô tả sản phẩm

Thông tin chi tiết

Tên sản phẩm: Bộ lọc IV 1,2 Micron IV dùng một lần Vỏ lọc: ABS
Kích thước lỗ chân lông: 1,2um Vật liệu trung bình: PES, PTFE cho lỗ thông hơi
Chiều cao chất lỏng dừng: ≥1,5 mét Chế độ lắp ráp: Hàn nóng chảy hoặc hàn siêu âm
khử trùng: Không vô trùng/EOS Loại: F, dùng một lần
Ưu điểm: Tự động dừng chất lỏng Màu sắc: Tự nhiên, chống ánh sáng có sẵn
Khả năng tương thích: Tương thích với ống truyền dịch IV tiêu chuẩn Bảo hành: 3 năm
Ứng dụng: Bộ truyền dịch Quốc gia xuất xứ: Trung Quốc
Làm nổi bật:

1.2 micron

,

iv filter 1.2μm

,

infusion set

Mô tả sản phẩm

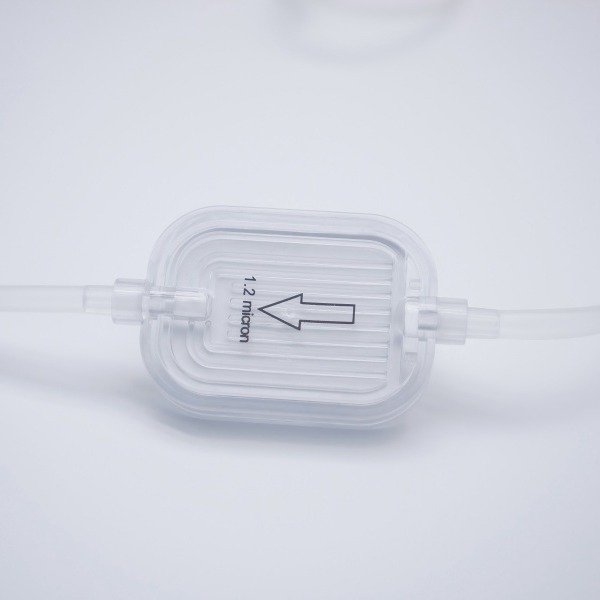

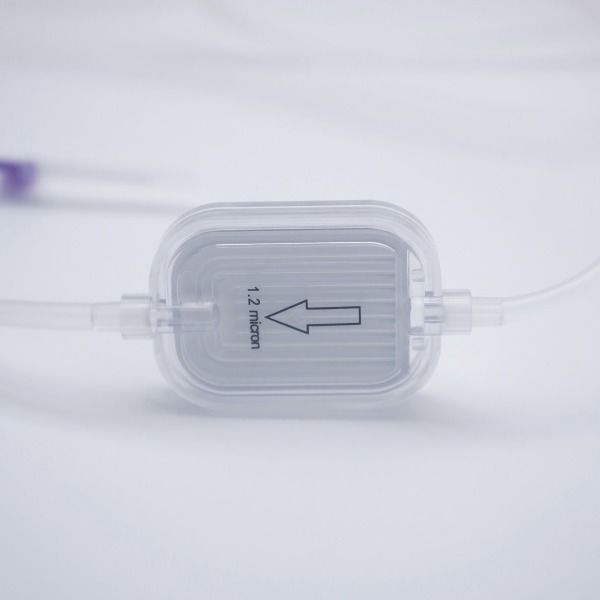

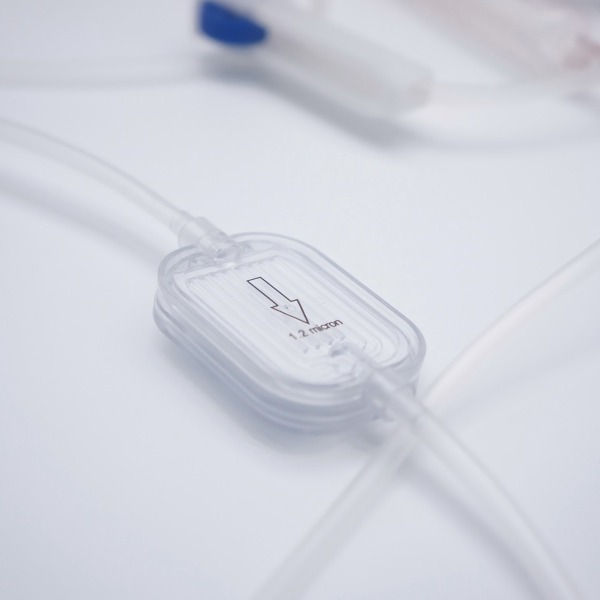

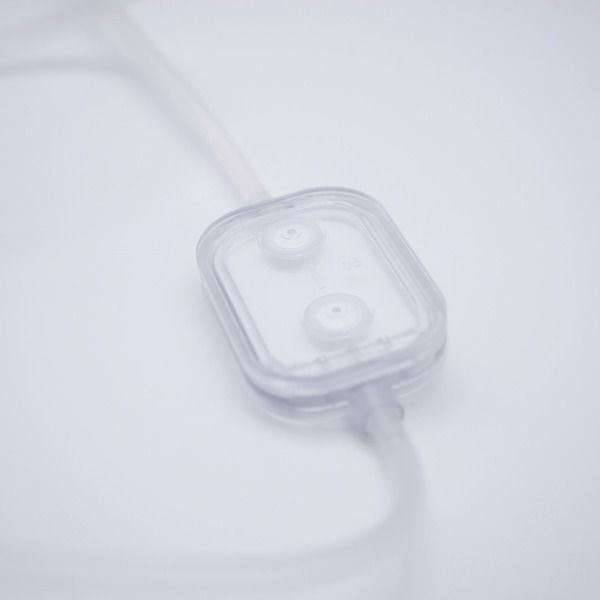

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.

1.2 micron IV Filter for infusion therapy 0
